PS/2 Encoder

Introduction

PS/2 Encoder interfaces industry standard PS/2 PC-compatible keyboards to devices requiring TTL-level RS232, parallel data , and/or PC XT signaling.  All ASCII key sequences are decoded, as well as common keyboard sequences like “CTRL-ALT-DEL”.  To provide maximum flexibility for various uses while retaining ease of operation, the unit’s configuration can be modified in-circuit using the PS/2 keyboard itself.

Options

The PS/2 Encoder can be purchased as a bare PCB, minimal kit (PCB, uC only), full kit with DIP 24 pin header, full kit with 2×12 IDC header, or assembled with either type of connector.

Requirements

  • A PS/2 compatible keyboard (USB keyboards with PS/2 converters may not work) with a Mini-DIN6 plug.
  • Regulated 5VDC Power source.
  • For RS232 operation, a TTL to RS232 level converter.

Purchase

PS/2 Encoder models can be purchased at the RETRO Innovations Online Store.

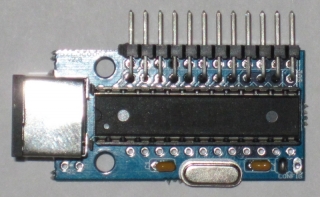

Image Gallery

Technical Details

PS/2 Encoder consists of an Atmel ATMEGA168 AVR microcontroller and associated connectors.  The GPLv2-licensed C firmware reads data from a PS/2 compliant keyboard, converting PS/2 scan codes into ASCII values that are presented via an 8-bit parallel and 5V RS232 connections and converting scancodes to XT compatible keyboard scan codes.  The PCB features include:

  • Supports 24 pin .6″ IC socket connection as well as 2×12 header connection.
  • Crystal footprint included on PCB
  • PS/2 connector footprint included on PCB
  • Through hole design makes “do-it-yourself” construction easy.

Support

Bill of Materials

Part Description
X1 Mini-DIN6 PS/2 Connector
R1 10K 1/8W resistor
IC1 Atmel ATMEGA48/88/168/328 uC
C1,C2 18pF ceramic capacitor
C3 .1uF ceramic capacitor
Q1 8MHz crystal
SV1 DIP24 IC header
SV2 2×12 breakaway header
CONFIG 1×2 .1″ breakaway header

Assembly Details

  1. Populate and trim C1,C2,C3 (install C3 from the bottom of the board)
  2. Populate and trip R1
  3. Populate IC1 with socket if desired
  4. Populate and trim Q1
  5. If SV1 desired, populate on bottom of PCB
  6. If SV2 desired, populate from top of PCB
  7. Populate X1
  8. (Optional) populate CONFIG or simply solder pads

Pinout

IC pin IDC pin Description
1 1 RS232 Receive
2 3 RS232 Send
3 5 PS/2 Clock
4 7 PS/2 Data
5 9 /AUX
6 11 B2
7 13 B3
8 15 /CONFIG
9 17 /INTERRUPT
10 19 PARALLEL STROBE
11 21 /RESET
12 23 GROUND
13 24 XT Data
14 22 XT Clock
15 20 DATA0
16 18 DATA1
17 16 DATA2
18 14 DATA3
19 12 DATA4
20 10 DATA5
21 8 DATA6
22 6 DATA7
23 4 C0
24 2 VCC

Operation

  1. Connect VCC to regulated +5VDC
  2. Connect GROUND to appropriate ground line.
  3. Data connection
    1. For parallel operation, connect D0-7 and STROBE to appropriate parallel keyboard input lines.
    2. For serial operation, connect keyboard 5V SND line to PS/2 Encoder RS232 Receive pin, and keyboard 5V RCV line to PS/2 Encoder RS232 Send pin.
    3. For XT operation, connect XT Clock and Data to appropriate pins on DIN5 plug, adding Vcc and GND to the plug as well.
  4. If desired, /INTERRUPT can be connected to active low wired-or IRQ line on target system.
  5. Apply power to system

Configuration

Configuration mode can only be accessed when the CONFIG jumper is present (or the pins are otherwise connected). To enter configuration mode, hold CTRL and ALT and press the Backspace key on the keyboard.  Once in configuration mode, only certain keys will respond to keypresses:

Key Description
Shift + ENTER ENTER will send CRLF via Parallel and RS232
& Set RS232 to 7-bit data length
* Set RS232 to 8-bit data length
T Increase inter-character delay
R Increase keyboard typematic rate
D Increase keyboard typematic delay
S Increase oscillator speed (on units without crystal)
ENTER ENTER will send CR only via Parallel and RS232
t Decrease inter-character delay
r Decrease keyboard typematic rate
d Decrease keyboard typematic delay
s Decrease oscillator speed (on units without crystal)
l Set STROBE as active-low
h Set STROBE as active-high
0 Set RS232 to 110bps
1 Set RS232 to 300bps
2 Set RS232 to 600bps
3 Set RS232 to 1200bps
4 Set RS232 to 2400bps
5 Set RS232 to 4800bps
6 Set RS232 to 9600bps
7 Set RS232 to 19200bps
8 Set RS232 to 38400bps
9 Set RS232 to 57600bps
o Set RS232 to ODD parity
e Set RS232 to EVEN parity
n Set RS232 to NONE parity
Backspace BS sends Backspace via Parallel and RS232
Delete Backspace sends Delete via Parallel and RS232
p Print current configuration
w Save current configuration

Once the desired configuration is set, pressing ‘w’ will save the settings, and CTRL+ALT+BS will exit configuration mode and apply the new settings. If configuration mode is exitted without saving, settings will last only until power is removed.

Project Files

Source code and EAGLE schematics/PCB files are available at http://www.go4retro.com/downloads/PS2Encoder/

Planned Enhancements

  • Add functionality for B2B3,C0,and AUX pins
  • Add support for various escape sequences
